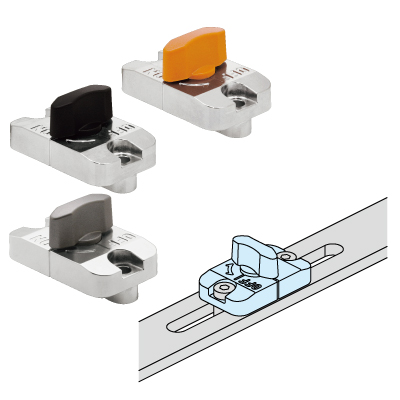

One Touch Sliding Locks are quick locks for slide adjustment.
Quick and secure clamping with a quarter turn reduces setup time and increases reliability in sliding applications for position change.
These sliding locks are ideal for slide position adjustment with a sliding bar or a slotted hole.
Product Video
Feature
Quick Locking with Quarter Turn!
Fix the position just by turning the knob without any tools.
The knob clicks when it is locked / unlocked.
Secure Locking!

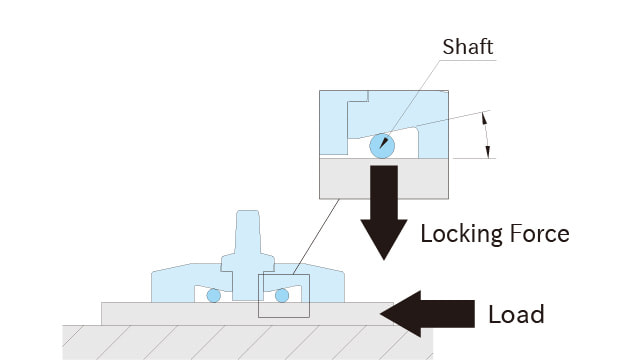

The shaft and the tapered surface stop the sliding movement.
No need to tighten the screw or clamp lever tightly.

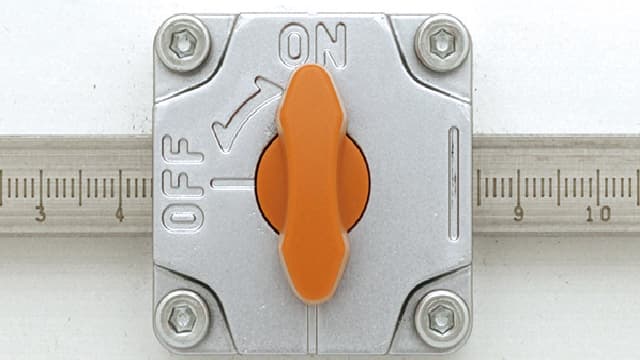

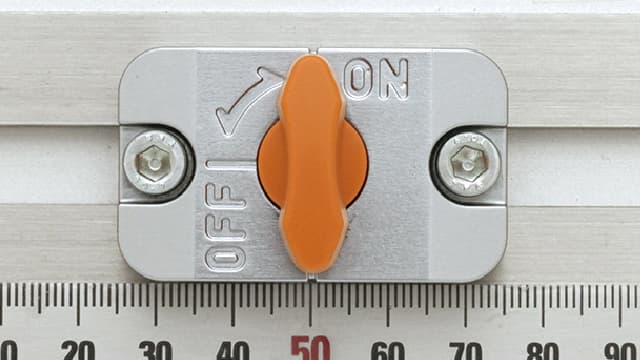

ON / OFF Indicator for Safety
The marking on the body shows locking / unlocking condition.


Application Example

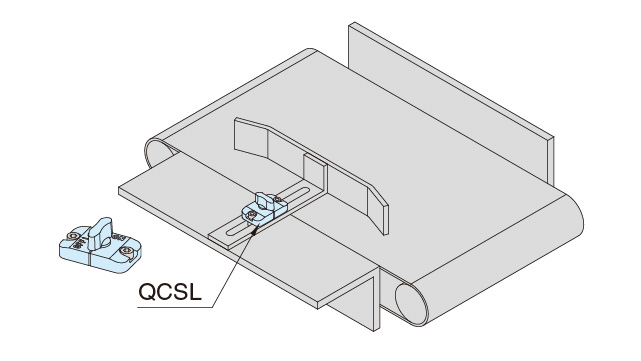

For adjusting conveyer guide

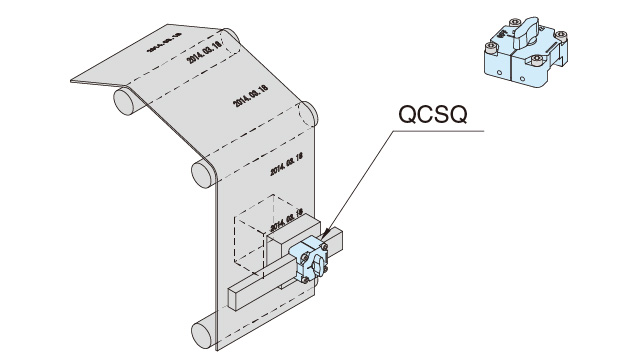

For adjusting camera position

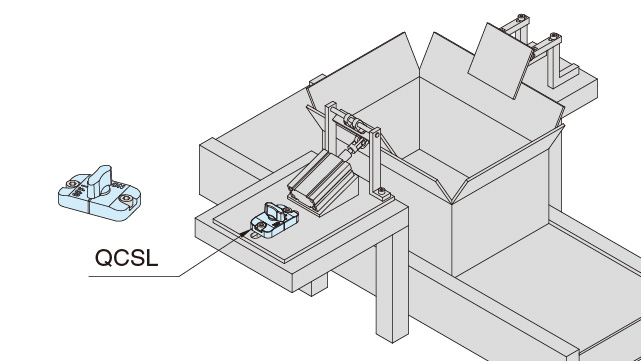

For adjusting opener position

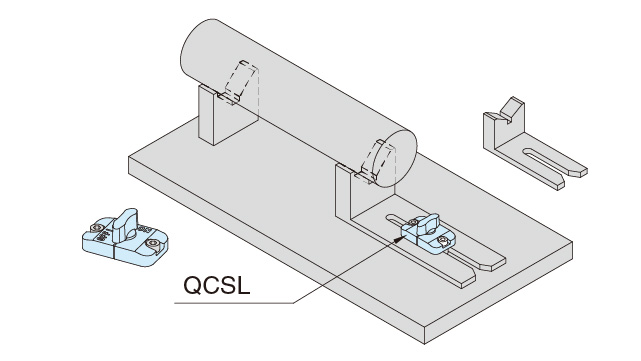

For adjusting workpiece guide

For adjusting stamping rest position

For adjusting vacuum pad position

For adjusting camera and nozzle positions in tight space

For adjustment of sensor position

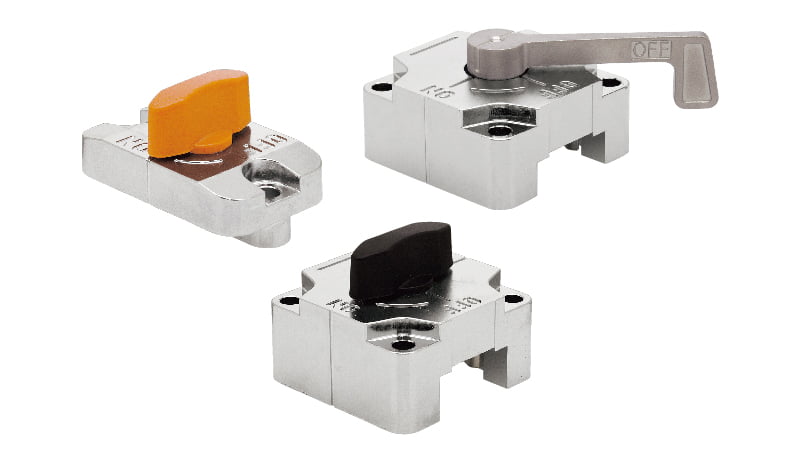

Lineup

QCSL
SLIDING LOCKS FOR SLOTTED HOLE

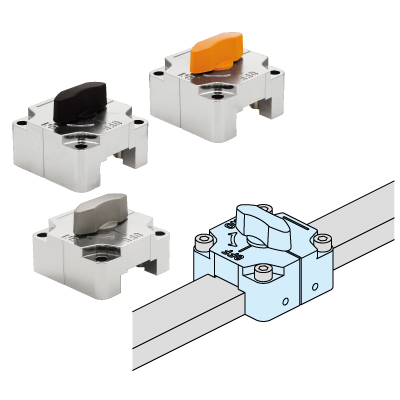

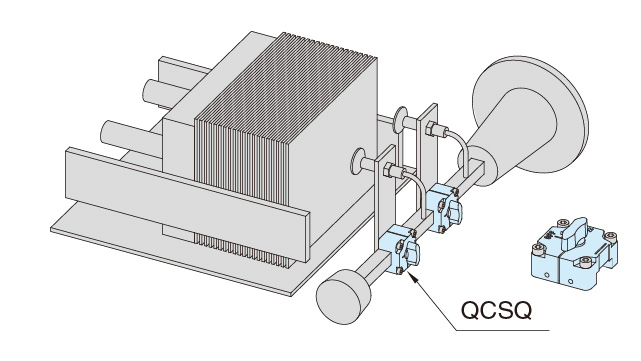

QCSQ
SLIDING LOCKS FOR SQUARE BAR

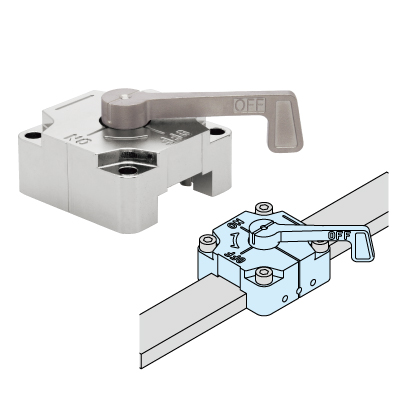

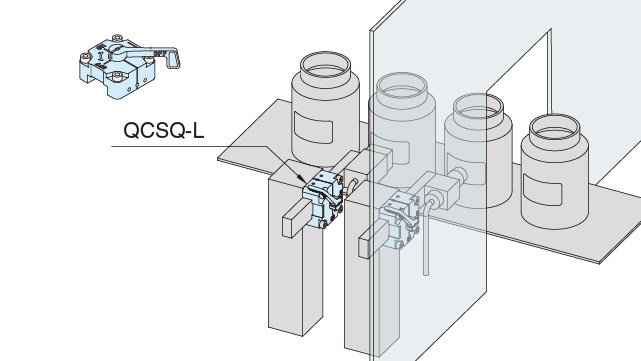

QCSQ-L
SLIDING LOCKS FOR SQUARE BAR WITH HANDLE
