Pneumatic Shaft-Locking Clamps are automated quick locks with air for machine changeover.
Perfect for secure clamping of sliding shaft and spindle after position adjustment of parts and units in the machinery.
Product Video
Feature
Positive Locking
Spring clamping and pneumatic unclamping mechanism prevents the decrease of clamping force by air leakage.

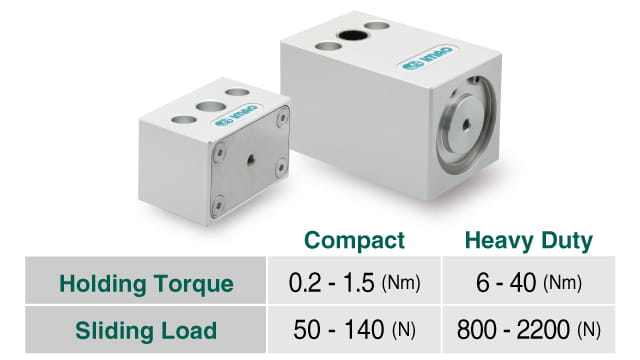

Compact or Heavy Duty
Two types are available according to the required load.
Shaft Diameter (mm) : 8, 10, 12, 16, 20, 25, 30

Remote / Multiple Operation
Multiple shafts can be clamped at a time from a distance.
Installation is possible at places out of reach.

ADDITIONAL FEATURE
Sensor Mountable Type for Detecting Clamp Condition
Magnetic sensor detects internal piston position on Pneumatic Shaft Locking Clamps and determines clamping condition.
Application Example
Sliding Shaft Locking

Lock for position adjustment

Slip prevention from backlash of linear slides

Horizontal lock with pneumatic cylinder

Vertical lock for elevator table
Spindle Locking

Rotation lock for rotary stages
Lineup

PSLC-L
PNEUMATIC SHAFT-LOCKING CLAMPS

PSLC-M,PSLC-M-S
PNEUMATIC SHAFT-LOCKING CLAMPS
