No Design Cost! Mechanical Linear Units

Ready-to-use actuators require no parts sellection and assembly

Product Catalog

Imao's Mechanical Linear Actuator is a completed manual linear unit with lead screw and guide.
The lead screw is built into the aluminum profile body and protected with a dust cover.
The unitized design reduces design cost by eliminating time for parts selection and assembly.
These ready-to-use actuators are in-stock to ensure better availability and quicker delivery.
Mechanical Linear Actuators offer improvement in quick position adjustments on printing machines, material feeders, packaging machines, and conveyors.

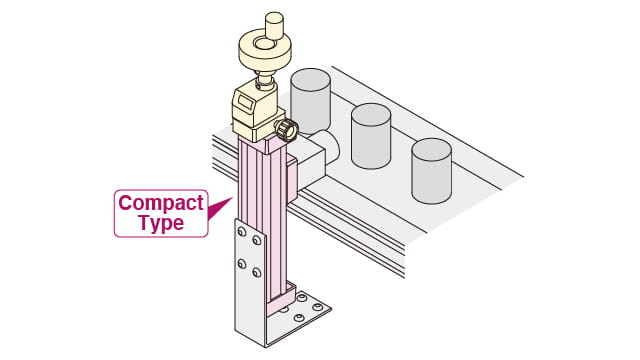

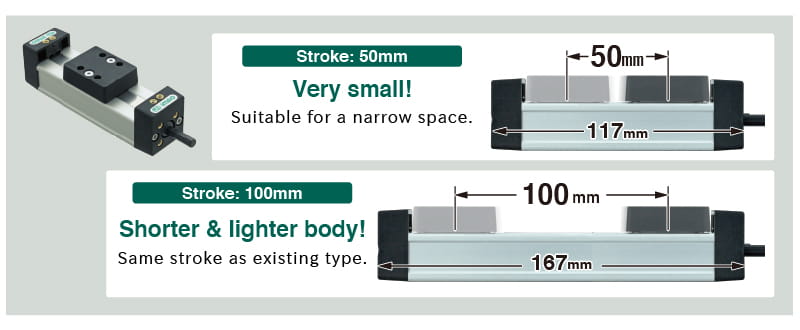

Compact Type!

Compact body fits in a small area! 2 sizes are available.

Application Example

The universal design enables to approach in many different usages.

Horizontal Use

Vertical Use

Serial Use

Parallel Use

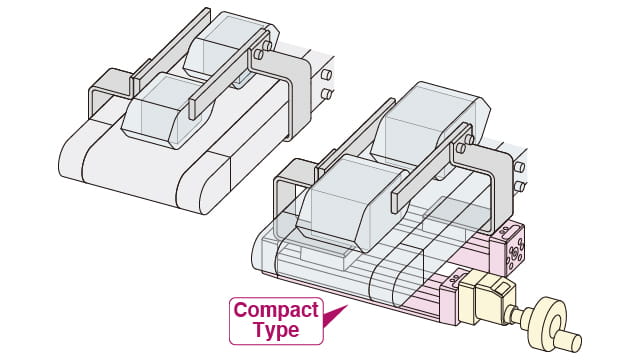

Conveyer Guide Adjustment

Part List

[MAU3222SS] COMPACT MECHANICAL LINEAR ACTUATORS

[GH-N] PLASTIC KNURLED KNOBS

[SDP-02] DIGITAL POSITION INDICATORS

[MAU-SL] SHAFT LOCKS

[MAU-SH] ADAPTER SHAFTS

Camera Position Adjustment

Part List

[MAU3222SS] COMPACT MECHANICAL LINEAR ACTUATORS

[GH-N] PLASTIC KNURLED KNOBS

[SDP-02] DIGITAL POSITION INDICATORS

[MAU-SL] SHAFT LOCKS

[MAU-SH] ADAPTER SHAFTS

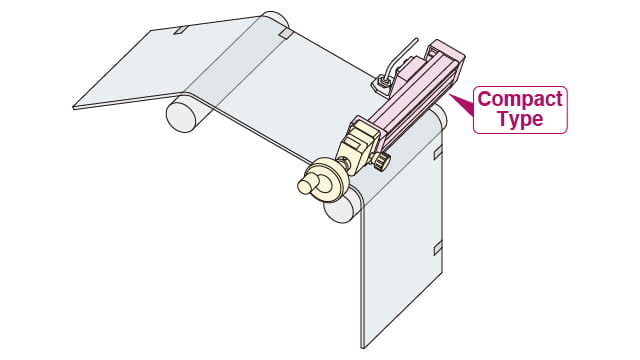

Registration Marks Sensor Position Adjustment

Part List

[MAU3222SS] COMPACT MECHANICAL LINEAR ACTUATORS

[GH-N] PLASTIC KNURLED KNOBS

[SDP-02] DIGITAL POSITION INDICATORS

[MAU-SL] SHAFT LOCKS

[MAU-SH] ADAPTER SHAFTS

Stamping Rest Position Adjustment

Part List

　
[MAU5040SS] MECHANICAL LINEAR ACTUATORS

[EDHN-M] PLASTIC SOLID DISK HANDWHEELS

[SDP-04] DIGITAL POSITION INDICATORS

[QCSPL] ONE-TOUCH SPINDLE LOCKS

[MAU5040-PS01] POSITIONING PLATE

[MAU-SH] ADAPTER SHAFTS

Stopper Position Adjustment

Part List

[MAG5040SS] MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX

[TWN-M] PLASTIC ANGLED-SPOKE HANDWHEELS

[SDP-04] DIGITAL POSITION INDICATORS

[MAU5040-PS01] POSITIONING PLATE

[MAU-SH] ADAPTER SHAFTS

Counting Sensor Position Adjustment

Part List

[MAG5040SS] MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX

[TWN-M] PLASTIC ANGLED-SPOKE HANDWHEELS

[SDP-04] DIGITAL POSITION INDICATORS

[MAU5040-PS01] POSITIONING PLATE

[MAU-SH] ADAPTER SHAFTS

Holder Belt Height Adjustment

Part List

[MAG5040SS] MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX

[TWN-M] PLASTIC ANGLED-SPOKE HANDWHEELS

[SDP-04] DIGITAL POSITION INDICATORS

[MAU-SH] ADAPTER SHAFTS

Conveyer Guide Adjustment

Part List

[MAU5040SW] MECHANICAL LINEAR ACTUATORS (Dual Carriage)

[EDHN-M] PLASTIC SOLID DISK HANDWHEELS

[SDP-04] DIGITAL POSITION INDICATORS

[QCSPL] ONE-TOUCH SPINDLE LOCKS

[MAU5040-PS01] POSITIONING PLATE

[MAU-SH] ADAPTER SHAFTS

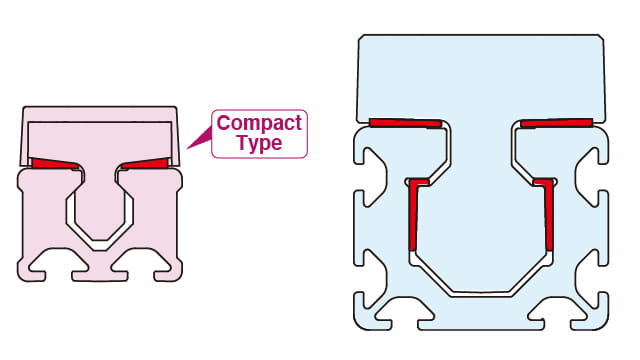

Mechanism

The abrasion resistance and self-lubricating material of sliding parts give the unit a longer lifetime against the load of up and down or sideways.

Product Catalog

Lineup

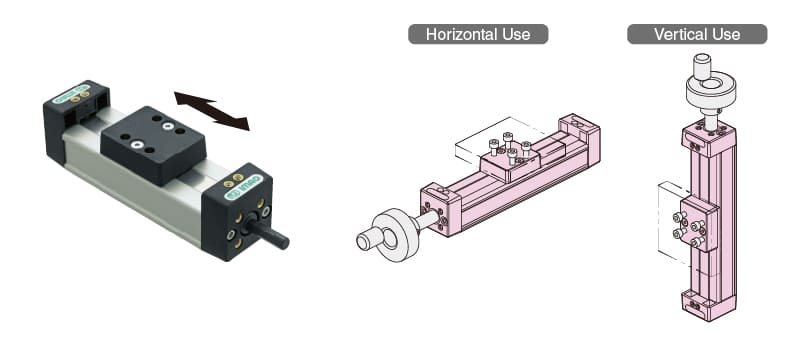

Compact Single Carriage

Carriage moves along with rotation of the shaft.

MAU3222SS

COMPACT MECHANICAL LINEAR ACTUATORS

Datasheet CAD

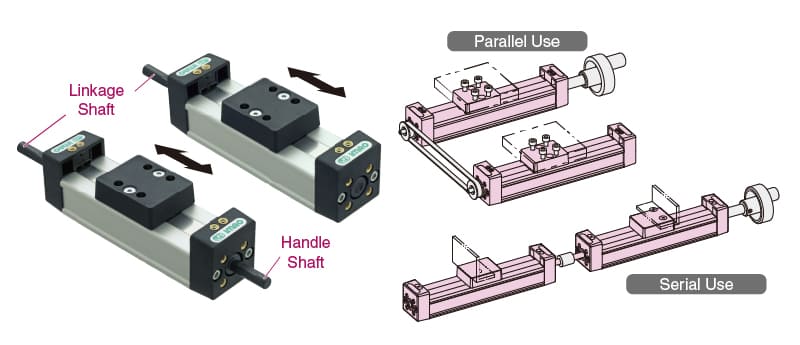

Compact Linkage Carriage

The actuators should be used in pairs connected at shafts.

MAU3222DS

COMPACT MECHANICAL LINEAR ACTUATORS (Synchro-Use)

Datasheet CAD

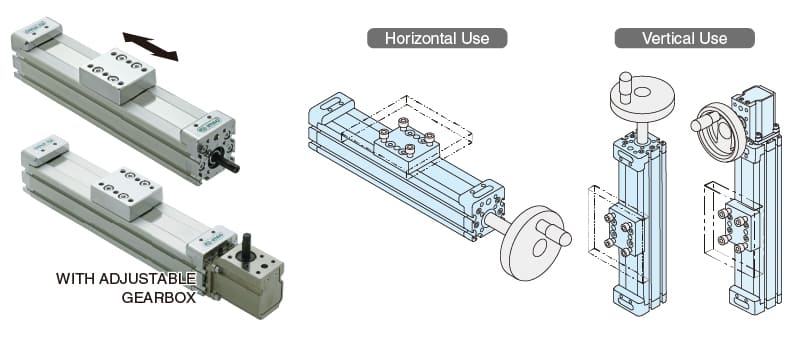

Standard Single Carriage

Carriage moves along with rotation of the shaft.

MAU5040SS

MECHANICAL LINEAR ACTUATORS

Datasheet CAD

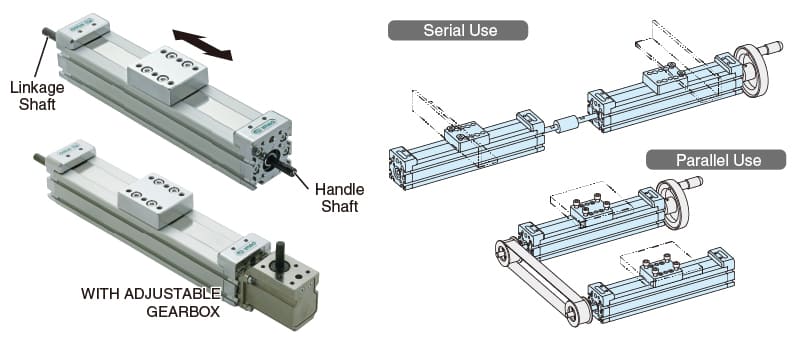

MAG5040SS

MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX

Datasheet CAD

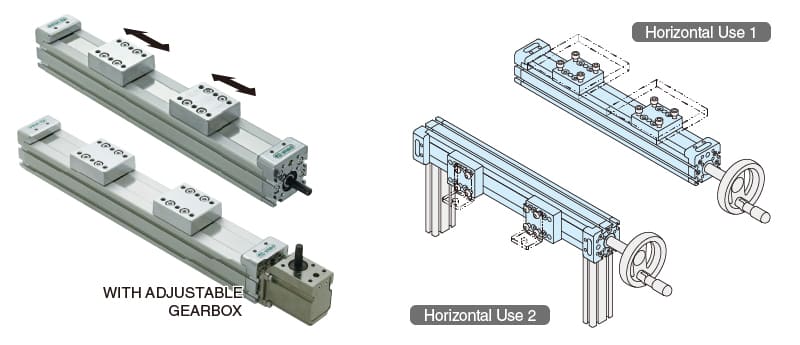

Standard Dual Carriage

Carriages move towards the center or opposite directions along with the rotation of the shaft.

MAU5040SW

MECHANICAL LINEAR ACTUATORS (Dual Carriage)

Datasheet CAD

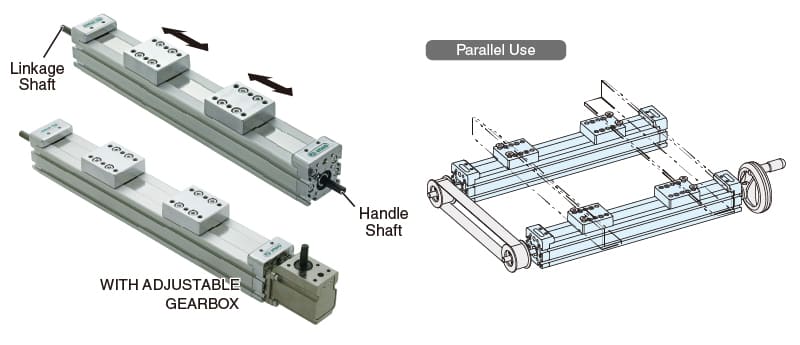

MAG5040SW

MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX (Dual Carriage)

Datasheet CAD

Linkage Single Carriage

The actuators should be used in pairs connected at shafts.

MAU5040DS

MECHANICAL LINEAR ACTUATORS (Synchro-Use)

Datasheet CAD

MAG5040DS

MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX (Synchro-Use)

Datasheet CAD

Linkage Dual Carriage

Carriages move towards the center or opposite directions along with the rotation of the shaft.
The actuators should be used in pairs connected at shafts.

MAU5040DW

MECHANICAL LINEAR ACTUATORS (Dual Carriage, Synchro-Use)

Datasheet CAD

MAG5040DW

MECHANICAL LINEAR ACTUATORS WITH ADJUSTABLE GEARBOX (Dual Carriage, Synchro-Use)

Datasheet CAD
