No tool interference in top surface machining!

16-style clamps meet any workholding requirement!

Product Catalog

IMAO's manual side clamps grip the side of a workpiece to keep the top free of obstructions in machining fixture.
Strong downward clamping prevents workpiece from lifting upward.

Product Video

Feature

Easy Tool Access!

No tool interference with clamp

Low profile design allows easy milling and machining.

Downward Clamping!

Jaw moves down to press a workpiece towards the fixture plate.

Secure workholding is key to better machining accuracy.

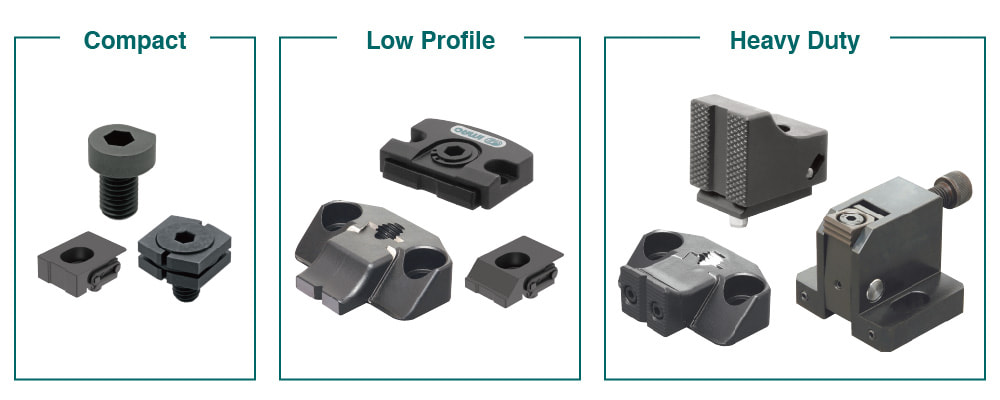

Many Styles and Sizes!

Compact, low profile, heavy duty, etc. are available for perfect clamping solution.

Compact

Low Profile

Heavy Duty

Application

IMAO's side clamps and toe clamps provide clamping solutions for various applications of CNC machining.

Product Catalog

Lineup

Compact

CP135

SPIRAL CAM CLAMPS
  • Very compact
Datasheet CAD

CP132

COMPACT WEDGE CLAMPS
  • Clamp both sides
Datasheet CAD

CP134

COMPACT SIDE CLAMPS
  • Downward clamping
Datasheet CAD

Low Profile

QLSCL

COMPACT LOW-PROFILE CAM EDGE CLAMPS
  • Jaw height: 3mm
  • Body height: 5mm
Datasheet CAD

QLSCL-NR

LOW-PROFILE CAM EDGE CLAMPS
  • Jaw height: 6mm
  • Body height: 10mm
Datasheet CAD

CP133

COMPACT TOE CLAMPS
  • Downward clamping
Datasheet CAD

CP106

TOE CLAMPS
  • High clamping force
  • Downward clamping
Datasheet CAD

CP104

TOE CLAMPS
  • High clamping force
  • Downward clamping
  • Serrated / Smooth jaw
Datasheet CAD

Heavy Duty

BJ161

CAM CLAMPS
  • Quick clamping
Datasheet CAD

BJ162

CAM EDGE CLAMPS
  • Downward clamping
Datasheet CAD

CP107

SIDE CLAMPS
  • High clamping force
  • Downward clamping
Datasheet CAD

CP105

SIDE CLAMPS
  • Downward clamping
  • Serrated / Smooth jaw
Datasheet CAD

QLSCH-H

SIDE CLAMPS
  • Downward clamping
  • Smooth jaw
Datasheet CAD

CP100

SIDE CLAMPS
  • High clamping force
  • Downward clamping
  • Ideal for cast iron
Datasheet CAD

CP101

SIDE CLAMPS
  • High clamping force
  • Downward clamping
  • Ideal for cast iron
Datasheet CAD

CP102

WIDE-JAW SIDE CLAMPS
  • High clamping force
  • Downward clamping
  • Ideal for cast iron
Datasheet CAD
